Semi-Automatic Soldermask Exposure Machine

日期:2018-09-10
我要分享

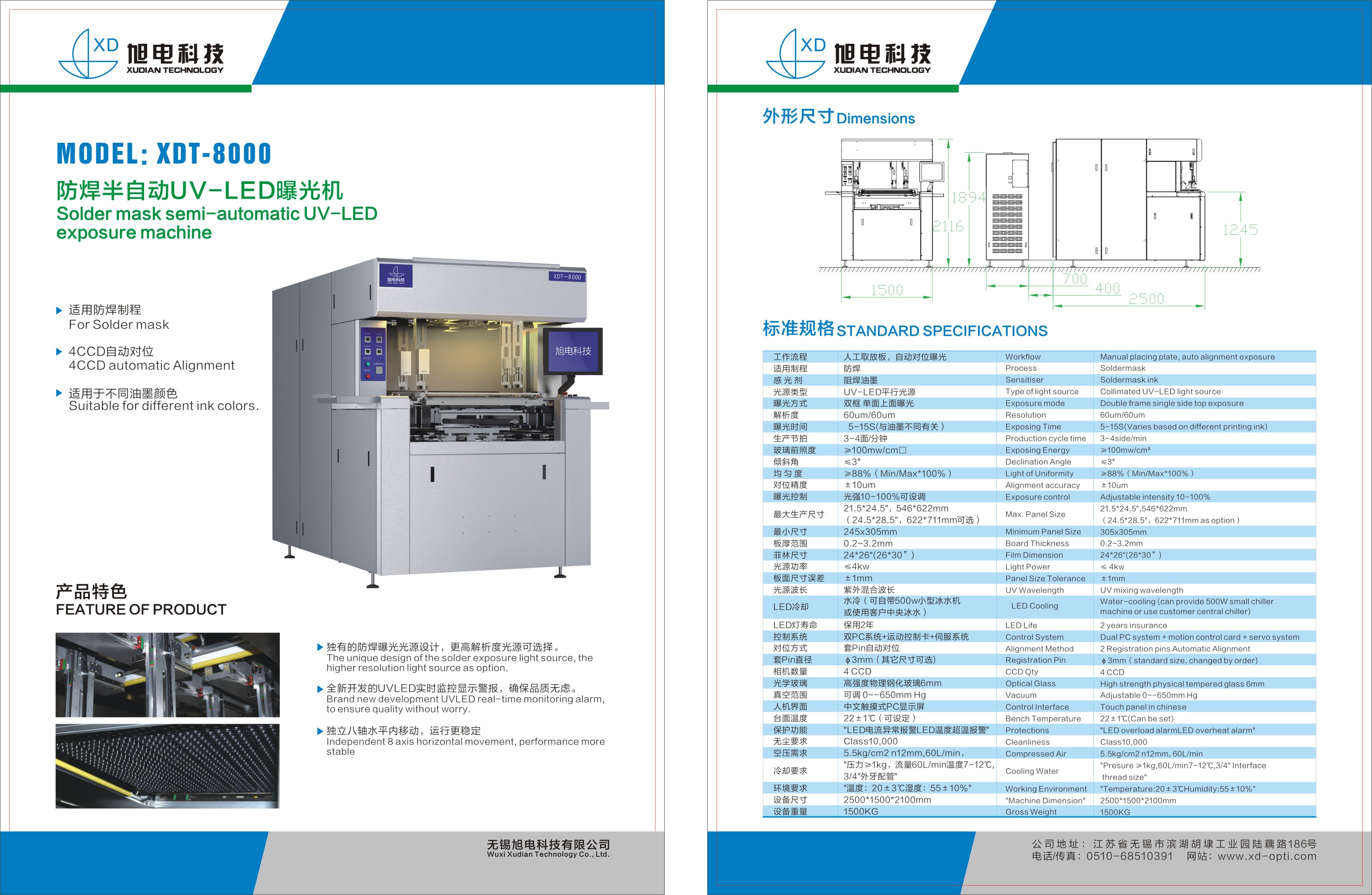

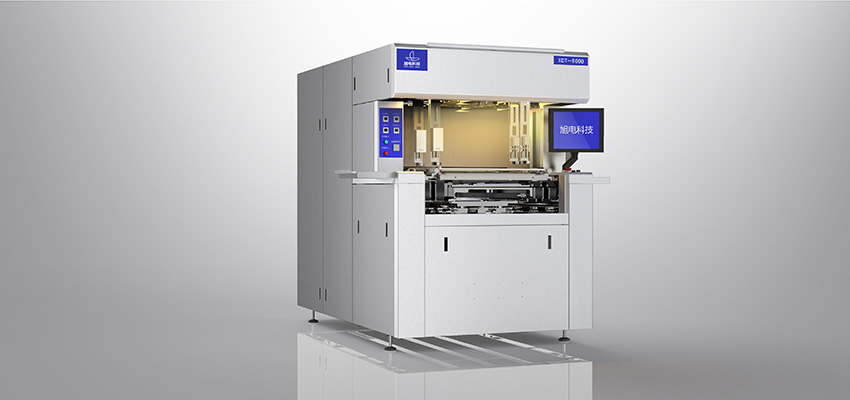

MODEL:XDT-8000
Solder mask semi-automatic UV-LED exposure machine

▶ For Solder mask
▶ 4CCD automatic Alignment
▶ Suitable for different ink color.

FEATURE PRODUCT

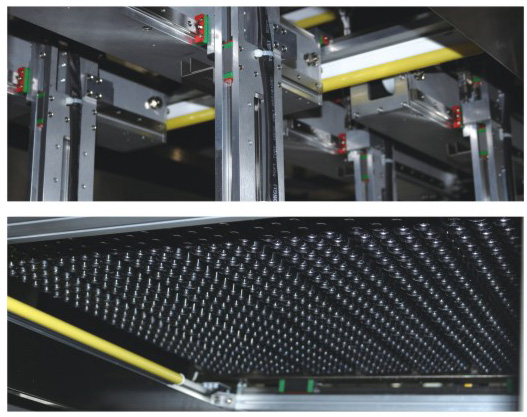

▶ The unique design of the solder exposure light source, the higher resolution light source as option.
▶ Brand new development UVLED real-time monitoring alarm, to ensure quality without worry.
▶ Independent 8 axis horizontal movement, performance more stable.

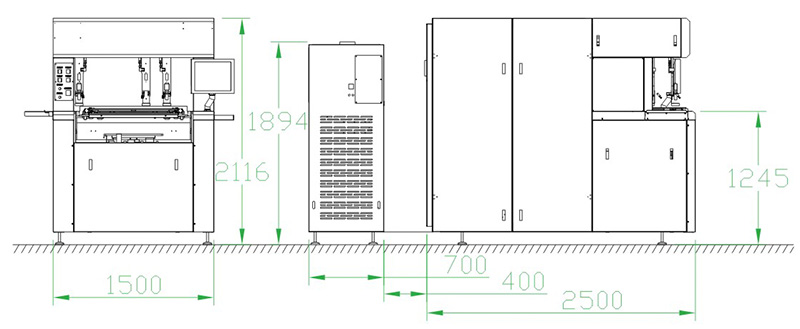

Dimensions


STANDARD SPECIFICATIONS

Workflow
Manual placing plate, auto alignment exposure
Process
Soldermask
Sensitiser
Soldermask ink
Type of light source
Collimated UV-LED light source
Exposure mode
Double frame single side top exposure
Resolution
60um/60um
Exposing Time
5-15S(Varies based on different printing ink)
Production cycle time
3-4side/min
Exposing Energy
≥100mw/cm²
Declination Angle
≤3°
Light of Uniformity
≥88%(Min/Max*100%)
Alignment accuracy
±10um
Exposure control
Adjustable intensity 10-100%
Max. Panel Size
21.5*24.5",546*622mm
(24.5*28.5",622*711mm as option)
Minimum Panel Size
254 x 305mm
Board Thickness
0.2~3.2mm
Film Dimension
24*26"
(26*30" as option)
Light Power
≤4kw
Panel Size Tolerance
±1mm
UV Wavelength
UV mixing wavelength
LED Cooling
water-cooling (can provide 500W small chiller machine or use customer central chiller)
LED Life
2 years insurance
Control System
Dual PC system + motion control card + servo system
Alignment Method
2 Registration pins Automatic Alignment
Registration Pin
φ3mm(standard size, changed by order)
CCD Qty
4 CCD
Optical Glass
High strength physical tempered glass 6mm
Vacuum
Adjustable 0~-650mm Hg
Control Interface
Touch panel in chinese
Bench Temperature
22±1℃(Can be set)
Protections

LED overload alarm
LED overheat alarm

Cleanliness
Class10,000
Compressed Air
5.5kg/cm2 n12mm,60L/min,
Cooling Water
Presure ≥1kg,60L/min
7-12℃,3/4" Interface thread size
Working Environment

Temperature:20±3℃
Humidity:55±10%

Machine Dimension
2500*1500*2100mm
Gross Weight
1500KG
