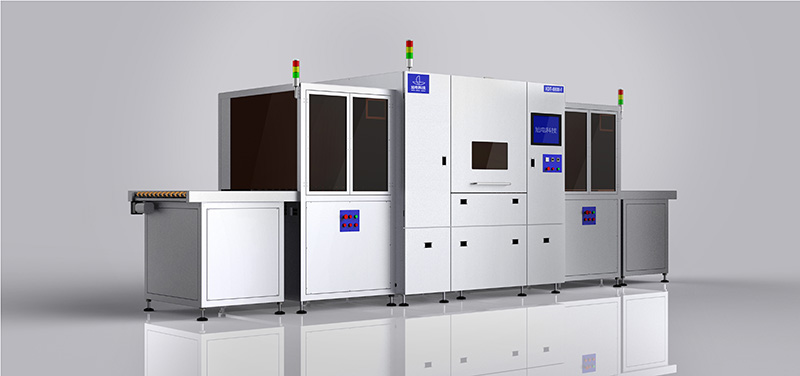

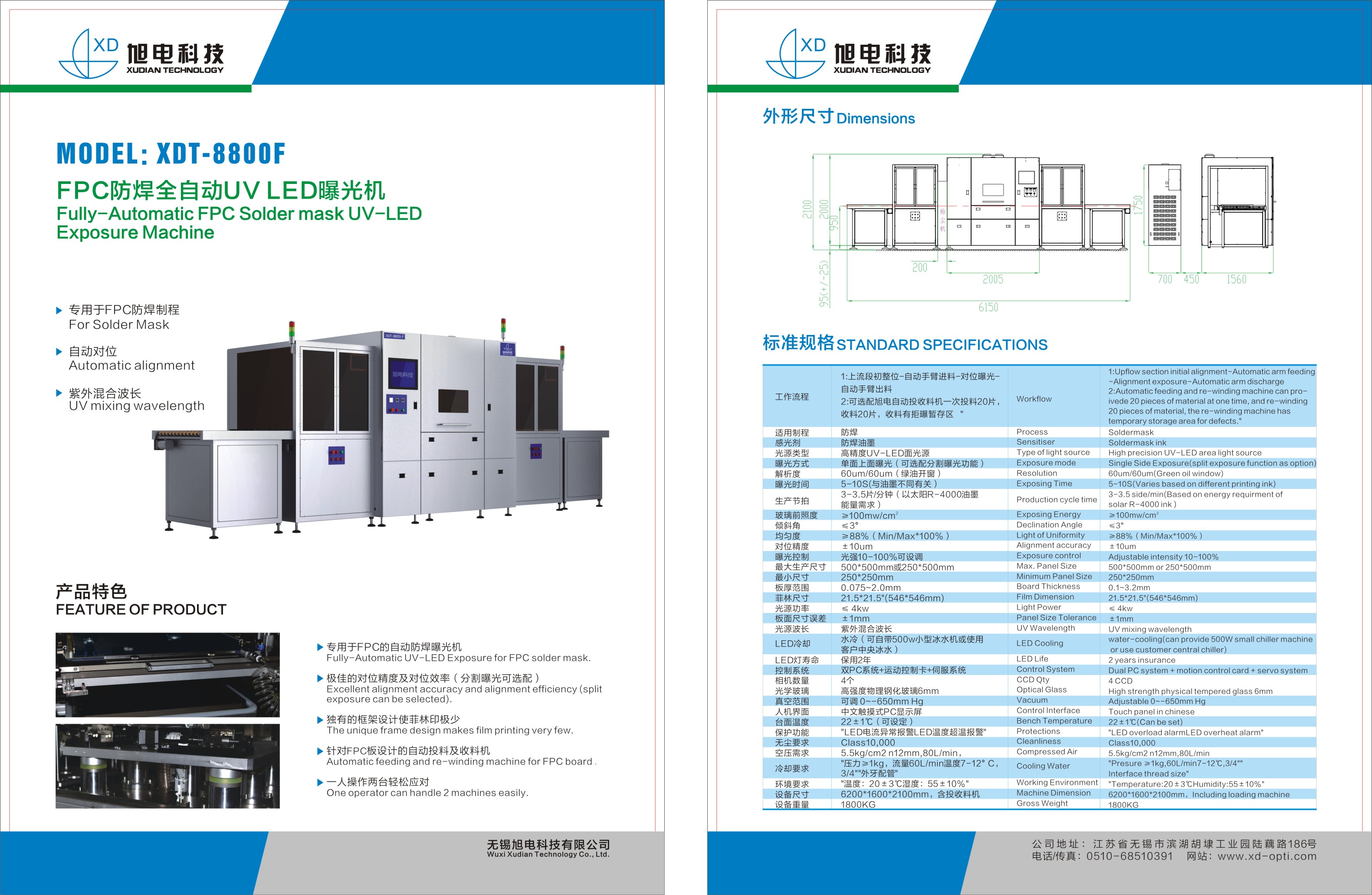

Workflow
|
1:Upflow section initial alignment-Automatic arm feeding-Alignment exposure-Automatic arm discharge
2:Automatic feeding and re-winding machine can proivede 20 pieces of material at one time, and re-winding 20 pieces of material, the re-winding machine has temporary storage area for defects. |
|
Process
|
Soldermask
|
|
Sensitiser
|
Soldermask ink
|
|
Type of light source
|
High precision UV-LED area light source
|
|
Exposure mode
|
Single Side Exposure(split exposure function as option)
|
|
Resolution
|
60um/60um(Green oil window)
|
|
Exposing Time
|
5-10S(Varies based on different printing ink)
|
|
Production cycle time
|
3-3.5 side/min(Based on energy requirment of solar R-4000 ink )
|
|
Exposing Energy
|
≥100mw/cm²
|
|
Declination Angle
|
≤3°
|
|
Light of Uniformity
|
≥88%（Min/Max*100%）
|
|
Alignment accuracy
|
±10um
|
|
Exposure control
|
Adjustable intensity 10-100%
|
|
Max. Panel Size
|
500*500mm or 250*500mm
|
|
Minimum Panel Size
|
250*250mm
|
|
Board Thickness
|
0.075~2.0mm
|
|
Film Dimension
|
21.5*21.5"(546*546mm)
|
|
Light Power
|
≤4kw
|
|
Panel Size Tolerance
|
±1mm
|
|
UV Wavelength
|
UV mixing wavelength
|
|
LED Cooling
|
water-cooling(can provide 500W small chiller machine or use customer central chiller)
|
|
LED Life
|
2 years insurance
|
|
Control System
|
Dual PC system + motion control card + servo system
|
|
CCD Qty
|
4 CCD
|
|
Optical Glass
|
High strength physical tempered glass 6mm
|
|
Vacuum
|
Adjustable 0~-650mm Hg
|
|
Control Interface
|
Touch panel in chinese
|
|
Bench Temperature
|
22±1℃(Can be set)
|
|
Protections
|
LED overload alarm |
|
Cleanliness
|
Class10,000
|
|
Compressed Air
|
5.5kg/cm2 n12mm,60L/min，
|
|
Cooling Water
|
Presure ≥1kg,60L/min
7-12℃,3/4" Interface thread size |
|
Working Environment
|
Temperature:20±3℃ |
|

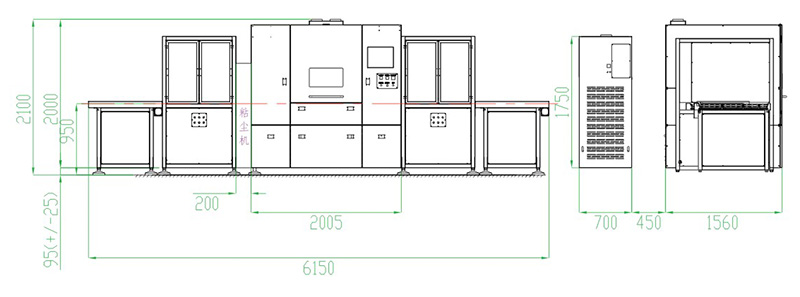

Machine Dimension
|
6200*1600*2100mm，Including loading machine
|
|
Gross Weight
|
1800KG
|
