MODEL:XDT-8200
Fully-Automatic Inner layer UV-LED Exposure Machine

▶ Inner layer lmaging
▶ Automatic alignment
▶ Inner layer Circuit lnk

FEATURE PRODUCT

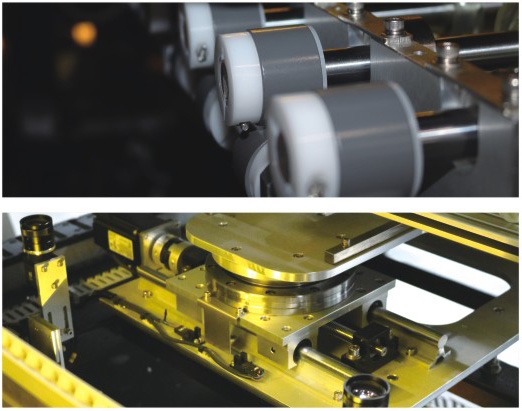

▶ The ultra clean design of the whole machine (driven by magnetic wheel and linear motor).
▶ Non contact initial alignment platform +3CCD alignment, the accuracy of the plate + 0.5mm.
▶ Automatic detection of plate accuracy.
▶ Automatic detection of plate accuracy.

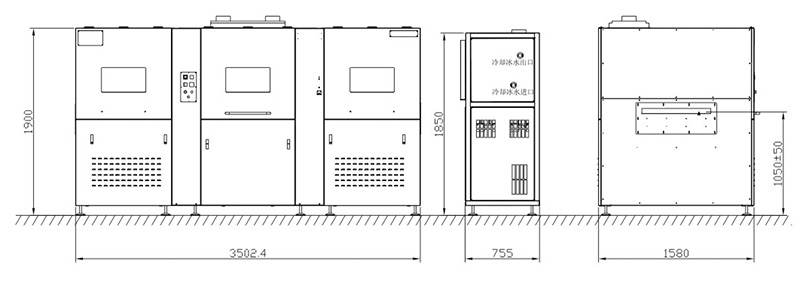

Dimensions


STANDARD SPECIFICATIONS

Workflow
Automatic feeding, Automatic alignment exposure,Automatic discharge
Process
Inner layer Imaging
Sensitiser
Circuit Ink
Type of light source
Both side Collimated UV-LED light source
Exposure mode
Capable of scanning exposure to both side at the same time by UV-LED
Resolution
50um/50um
Production cycle time
≥3.5 Side/min(Dry/Wet Film Process )
Exposing Energy
30-50mw/cm²
Declination Angle
≤3°
Light of Uniformity
88%(min/maxX100%)(25 points sweep energy measurement)
Alignment accuracy
±10um
Exposure control
Adjustable intensity 10-100%
Max. Panel Size
21.5*24.5",546*622mm
(24.5*28.5",622*711mm as option)
Minimum Panel Size
355x 355mm
Board Thickness
0.075~3.2mm
Film Dimension
24*26"
(26*30" as option)
Light Power
≤4kw
UV Wavelength
385nm
LED Cooling
water-cooling (can provide 500W small chiller machine or use customer central chiller)
LED Life
3 years insurance
Control System
Dual PC system + motion control card + servo system
Upper frame opening mode
Automatic tilting open frame
CCD Qty
7 CCD
Optical Glass
up and down 8mm physical tempered glass
Vacuum
Adjustable 0~-650mm Hg
Control Interface
Touch panel in chinese
Bench Temperature
22±1℃(Can be set)
Protections

LED overload alarm
LED overheat alarm

Cleanliness
Class10,000
Compressed Air
5.5kg/cm2 n12mm,60L/min,
Cooling Water
Presure ≥1kg,60L/min
7-12℃,3/4" Interface thread size
Working Environment

Temperature:20±3℃
Humidity:55±10%

Machine Dimension
3500*1600*2000mm
Gross Weight
